Mechanical Time Switch Fabrication

• Since 1971, IFG Instruments, Inc. has been an import distributor mechanical and electromechanical time switch products including timers, gears, hairsprings, pinions and gears, and precision screws. We also specialize in stampings with the capacity for deep drawn parts and Bourdon tubes. Many of our suppliers are ISO 9000 certified.

  We offer several different configurations of time switches, including the Mi2 and Mi7, that are panel mounted, plug-in time switches rated up to 250V and the Mi14, an electrically wired, permanent in-wall time switch. Depending on the model, these time switches can time up to 14 hours, and are available with either one to two or one to four poles. Special spindle sizes and wind up angles are available with these standard models, and all are UL and CSA approved.


  Request a Quote

  ---

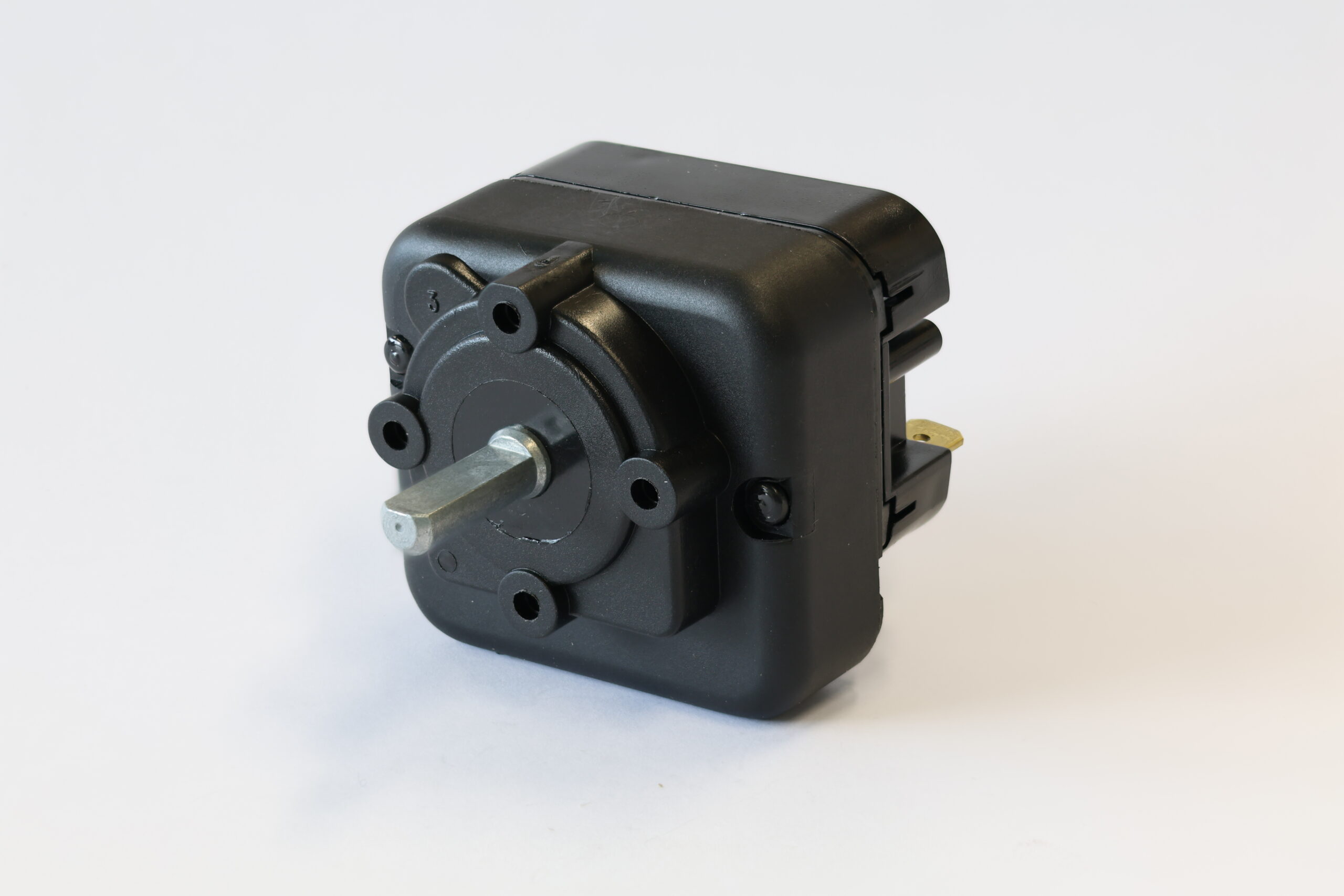

  Mi2	Switch Ratings 16 A-250V One to four poles Switching configurations SPST and DPST N.O or N.C SPDT and DPDT delayed switches Hold position CCW or end up angle Distance between
  Distance between open contacts	> 3 mm
  Terminals	Side or rear 6.35 x 0.8 mm tab
  Standard Centers	1.125
  Mounting Type	Both center stud mount or 2 screw mount
  Ratings	16 A -250 V
  Switching Configurations	SPDT and DPDT delayed switches SPST and DPST N.O or N.C.
  Life	10,000 cycles
  Dielectric Strength	2,500 V 50 Hz
  Timing Range	1 minute to 14 hours
  Temperature Range	-30 to +125 ºC -20 to 260 ºF
  Mounting Instructions	Both center stud mount or 2 screw mount on 1.125 centers.
  Approvals	CSA UL

Mi7	Switch – Ratings 16 A -125 V. – One to two poles. – Switching configurations: SPST and DPST N.O or N.C. – Hold position. – Distance between open contacts >, 3 mm. – Life: 10.000 cycles. – Dielectric strength: 2.500 V
No of Poles	1 to 2
Distance between open contacts	> 3 mm
Terminals	Side or rear 6.35 x 0.8 mm tab
Standard Centers	1.125
Mounting Type	Both center stud mount or 2 screw mount
Ratings	16 A -125 V
Switching Configurations	SPST and DPST N.O or N.C
Life	10,000 cycles
Dielectric Strength	2.500 V 50 Hz

Timing Range	1 minute to 120 minutes
Temperature Range	-30 to +125 ºC -20 to 260 ºF
Mounting Instructions	Both center stud mount or 2 screw mount on 1.125 centers.
Approvals	CSA UL

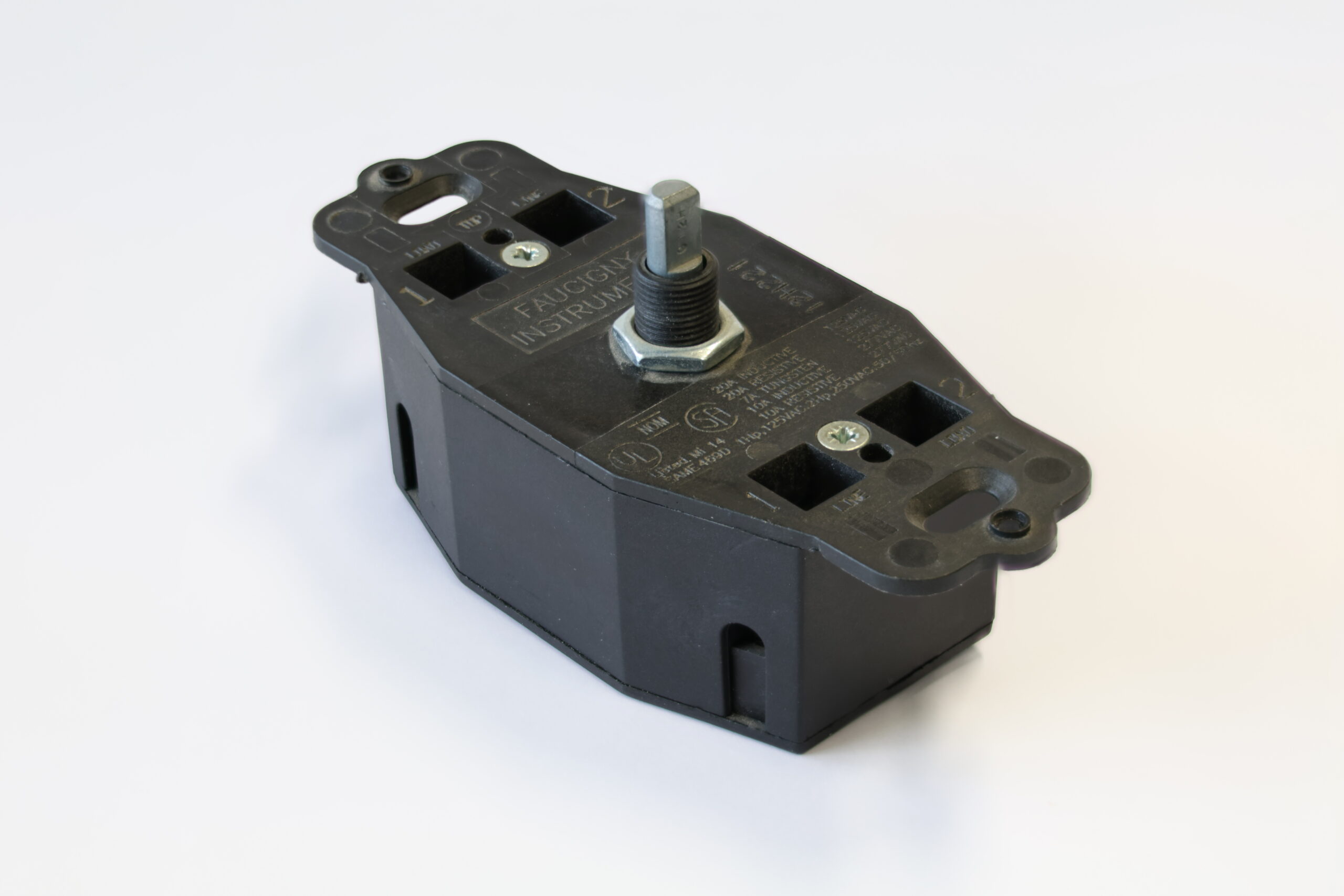

Mi14	In-Wall Time Switch – Ratings: 20 A -125 Vac 10 A -277 Vac 7 A tungsten 125 Vac 1 HP 125 Vac and 2 HP 250 Vac – Switching configurations: SPST, DPST, SPDT, N.O. or N.C. – Hold position CCW. – Distance
Distance between open contacts	> 3 mm
Terminals	Internal screw clamp
Mounting Type	Panel
Hold Position	CCW
Ratings	1 HP 125 Vac and 2 HP 250 Vac 20 A -125 Vac 10 A -277 Vac 7 A tungsten 125 Vac
Switching Configurations	SPST, DPST, SPDT, N.O. or N.C
Life	6,000 cycles
Dielectric Strength	2,500 V 50 Hz
Timing Range	1 minute to 12 hours
Temperature Range	-30 to +125 ºC -20 to 260 ºF
Mounting Instructions	Mountable in a standard electric outlet/switch box Panel mountable
Approvals	CSA UL

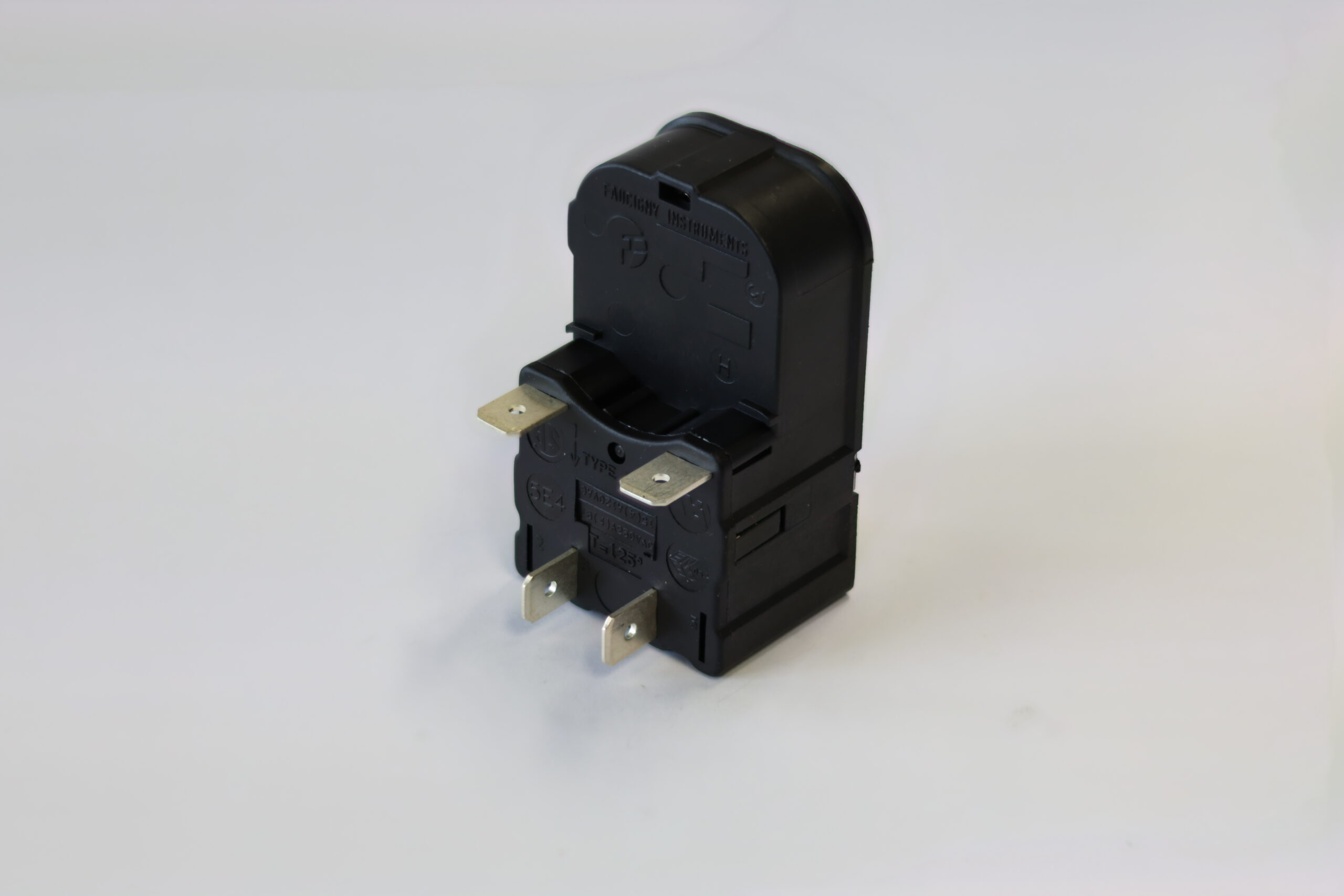

C10	This time switch is a reliable product which has been chosen by many manufacturers in the industry world wide as it integrates many advantages such as : For a wide range of applications : mini wash, solarium, saunas, fans, battery chargers, industrial
Product Identification See Document	E.C10.J.02
Technical Data See Document	E.C10.C.002
Switch Conforms with	CEE24-UL917-C22.2
Resistive Switching Capacity (Inductive)	16 (3) A
Voltage Rating	250 V ~
Switch for Appliance Class	I – I
Dielectric Strength	3750 V ~
Tab Terminals	6.3 x 0.8 mm
Distance Between Open Contacts	≥ 3 mm
Self Extinguishability Class	VO (UL94)
Ambient Temperature	-10°C +85°C
Timing Range in Minutes	5 – 10 – 15 – 20 – 30 – 60 – 90 – 120 – 135
Standard Dimensions of Shaft	Ø 6 x 4.6 L23
Switch Position at Rest	NO-NC

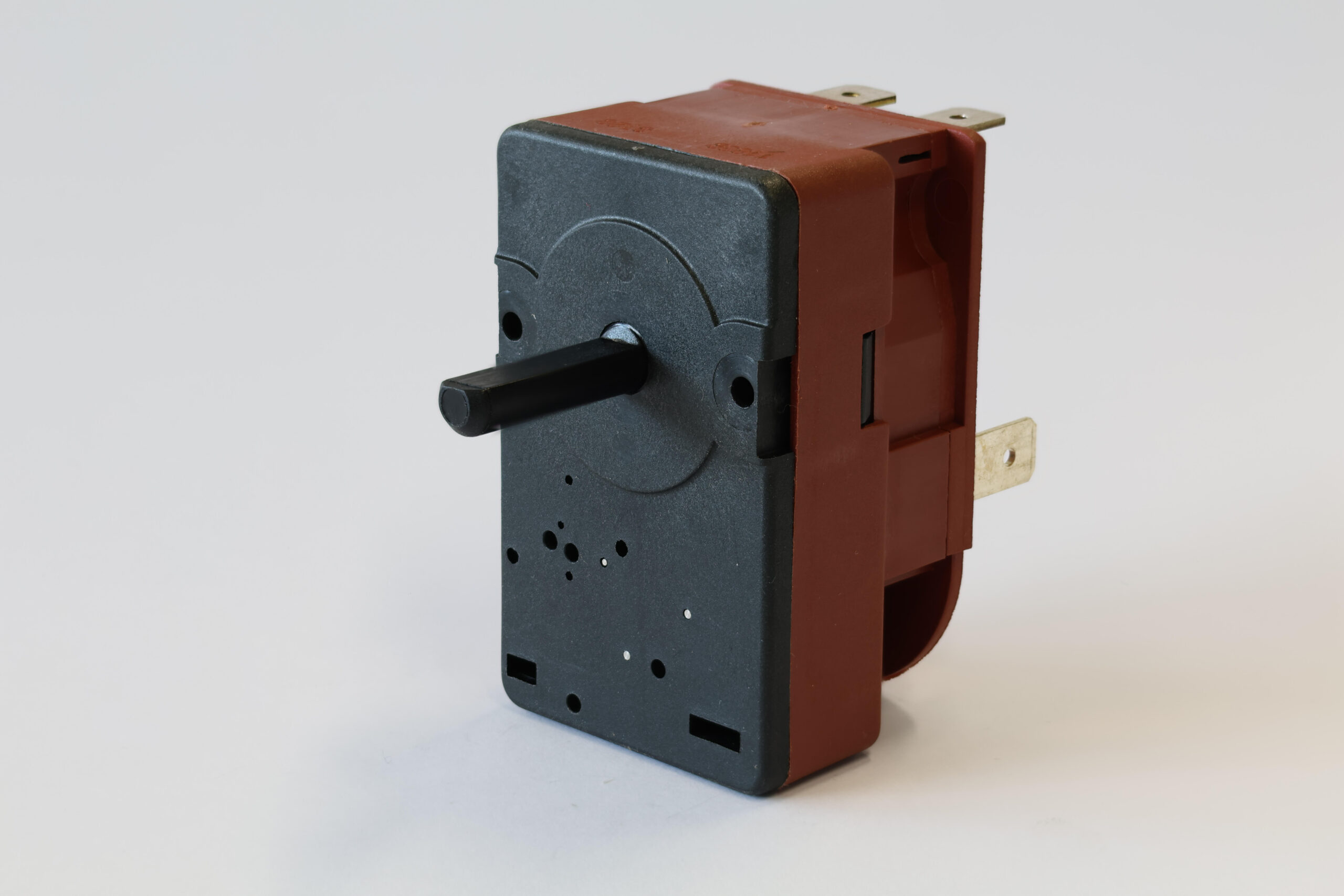

C20	This mechanical time switch is a reliable product which has been chosen by many manufacturers in the industry worldwide as it integrates many advantages such as : – for a wide range of applications : mini ovens, mini wash, toaster, deep fryers
Product Identification See Document	E.C20.J.03
Technical Data See Document	E.C20.C.003
Switch Conforms to Electrical Standards	EN 60730-2-1
Resistive Switching Capacity (Inductive)	16 (3) A
Voltage Rating	250 VAC
Switch for Appliance Class	I – II
Dielectric Strength	3750 VAC
Tab Terminals	6.3 x 0.8 mm silver plated
Distance Between Open Contacts	≥ 3 mm
Self Extinguishability Class	VO (UL94)
Ambient Temperature	-10°C +125°C
Timing Range in Minutes	5 – 7 – 15 – 20 – 30 – 60 – 90 – 120
Standard Dimensions of Shaft	Ø 6 x 4.6 L23
Switch Position at Rest	NO-NC
Number of Electrical Operations	10000

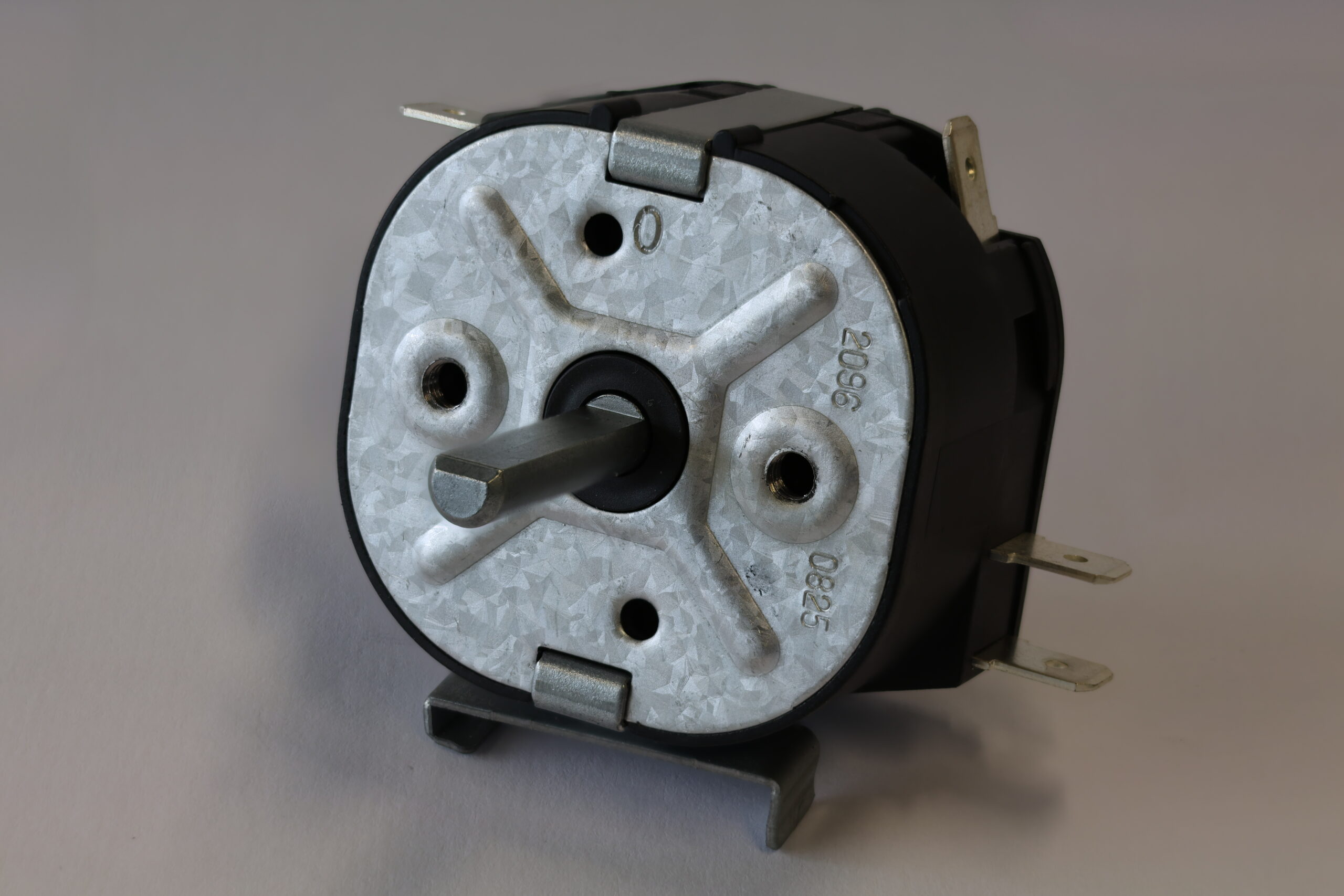

• Mi12	A compact timing mechanism driven by a synchronous motor. This motor through a gear train silently rotates a camshaft that opens, closes, or change-over up to 6 contacts after a set time from 15 minutes to 24 hours. Manual switch-on position is optional. The high mechanical characteristics materials used for the housing meet all the possible requirements for self-extinguishing and tracking resistant properties. Applications: Heating Air-conditioning Baking and drying ovens Saunas Tanning Products Ventilators Washing machines Clothes dryers
  Switch Breaking Capacity	20 (4) A 125 VAC 16 (4) A 240 VAC 10 (4) A 380 VAC
  Max Ambient Temperature	85°C
  Insulation Class	CEE 24:1
  Operating Number	1,000 cycles
  Open Contact Gap	> 3 mm
  Tolerance on Total Timing	+/- 2%
  Motor Rated Voltages	240 V 50 Hz 125 V 60 Hz 250 V 60 Hz 24 V 50 Hz 24 V 60 Hz
  Mounting	standard by means of 2 self threaded screws dia 3.5 DIN 7971. Others on request
  Quality Certifications	VDE, IMQ, UL
  Faucigny Instruments	North American distributor of mechanical time switches. Useful for a broad range of operations.
  Applications	Aerospace Appliance Consumer Products Gauge Industry Industrial Original Equipment Manufacturing Medical / Dental & Healthcare Military Plus many more…
  Quality Certifications	UL CSA VDE
